Veinlite R
55109
- Visualises both tail veins and arteries in mice and rats using transillumination.
- Three LED colours and three brightness levels support imaging and examination.
- Compact 29 g device powered by one AAA battery, with automatic shut-off.
FAQ - Veinlite R
Can Veinlite R show both veins and arteries?
Can Veinlite R show both veins and arteries?
How is Veinlite R powered?
How is Veinlite R powered?
Can Veinlite R be autoclaved?
Can Veinlite R be autoclaved?

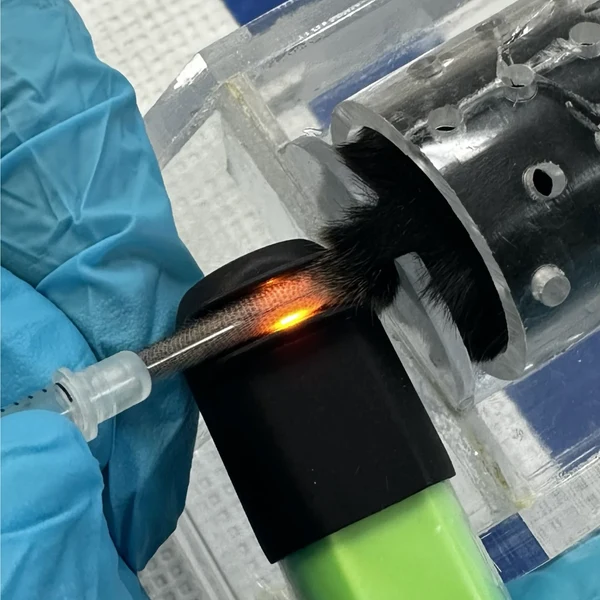

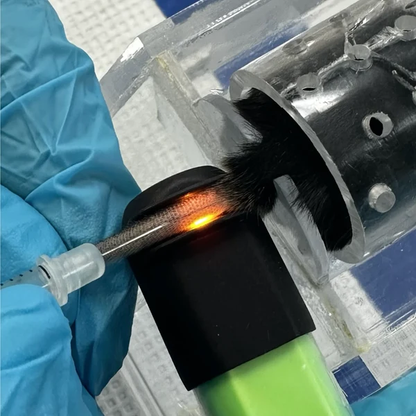

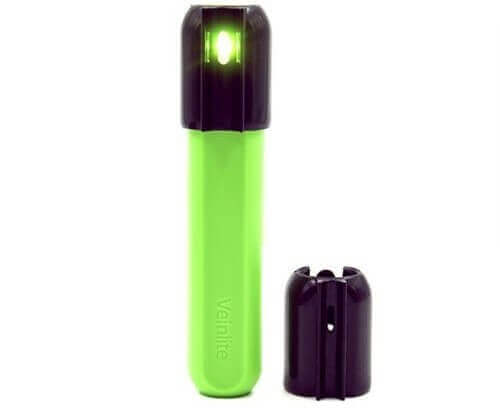

Veinlite R is a compact transillumination device for visualising veins and arteries in the tails of mice and rats. Light passes through the tail to reveal vessels, providing a visual aid when preparing for venous or arterial access in laboratory animal research.
Lighting for different tasks

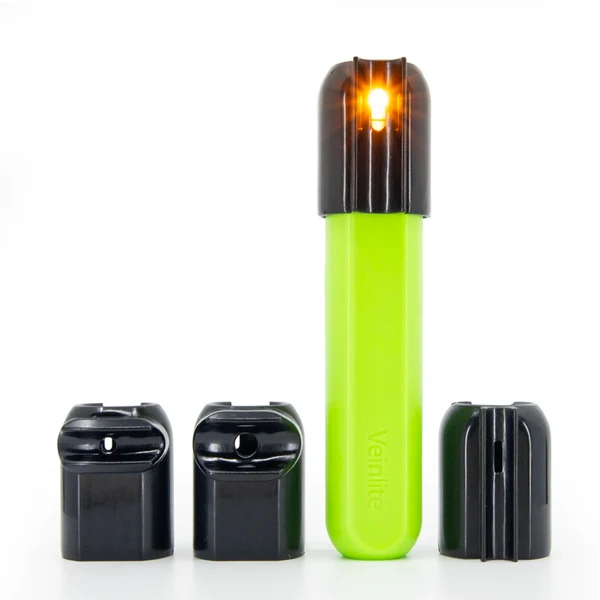

Three LED colours support different applications: orange for vein visualisation, green for arteries and white for examination. Low, medium and high brightness settings allow the light intensity to be adjusted to the task. Tail adapters provide support for positioning and stabilising the tail during access.
Technical specifications
- Designed for mice and rats
- Three LED colours: orange, green and white
- Three selectable brightness levels
- Powered by one AAA 1.5 V battery
- Weight: 29 g including battery
- Dimensions: 96.1 × 19.0 × 16.5 mm
- Automatic shut-off
Handling and hygiene
Veinlite R is for external use on animals. Use a single-use protective cover and replace it between animals, following the instructions for use and local hygiene procedures. The device must not be autoclaved or immersed in liquid. Avoid looking directly into the illuminated LEDs.
