Veinlite LED+
55110
- 27 mm illumination opening for vein visualisation in larger research animals.
- 22 orange LEDs for superficial veins and 6 red LEDs for deeper veins.
- Rechargeable lithium-ion battery with approximately 300 minutes of continuous use.
FAQ - Veinlite LED+
How does Veinlite LED+ differ from Veinlite R?
How does Veinlite LED+ differ from Veinlite R?
What are the orange and red LEDs used for?
What are the orange and red LEDs used for?
How long does the rechargeable battery last?
How long does the rechargeable battery last?

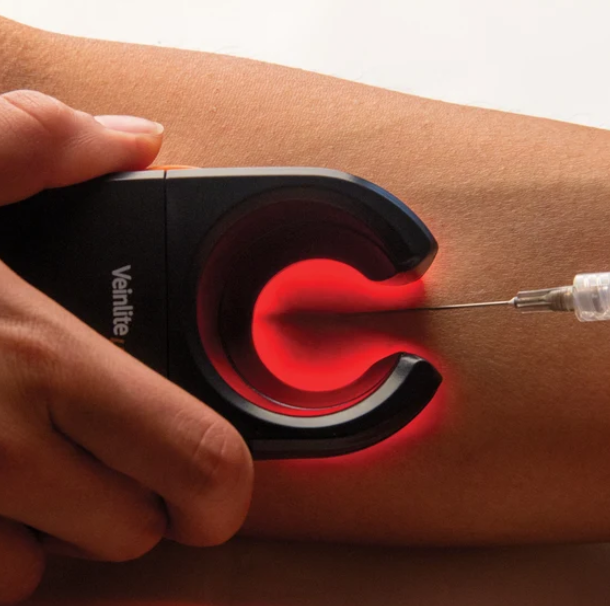

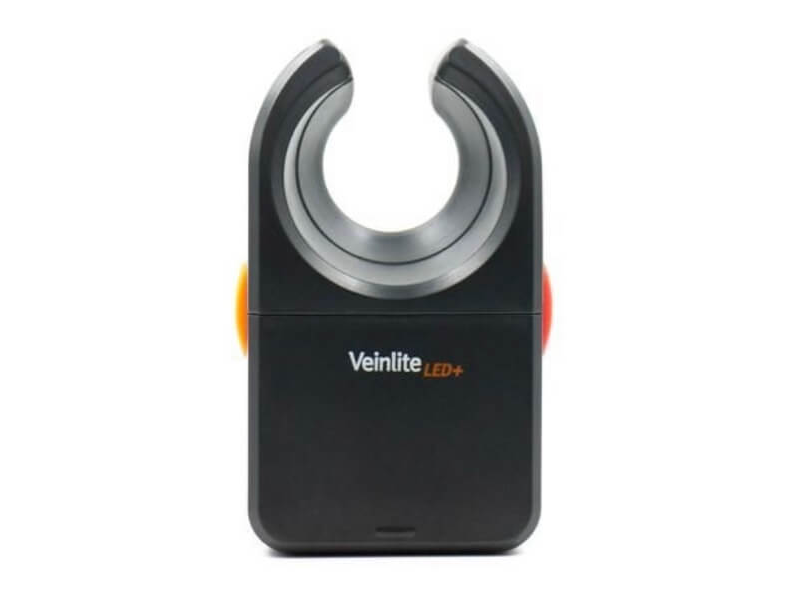

Veinlite LED+ is a handheld transillumination device for visualising veins in larger research animals. Its 27 mm illumination opening provides a viewing area for locating vessels when preparing for venous access.
Two LED colours for vein visualisation

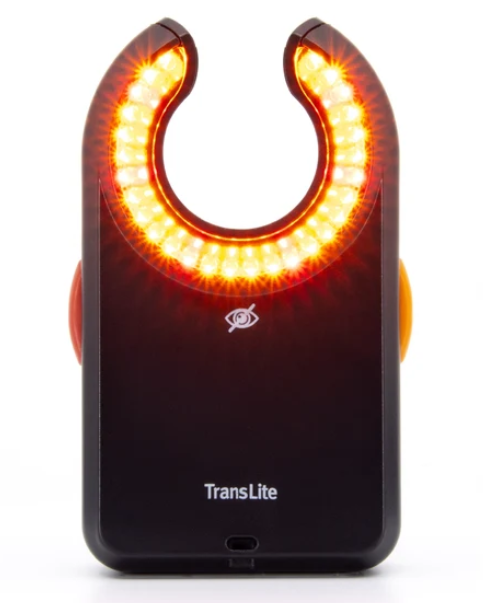

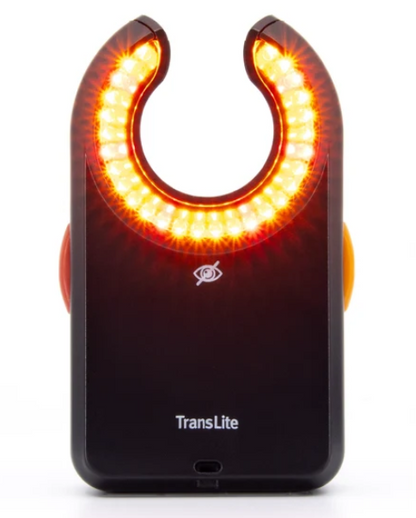

The device combines 22 orange LEDs for superficial veins with 6 red LEDs for deeper veins. Side-transillumination directs light through the tissue to make underlying venous structures visible. This model complements Veinlite R, which is designed specifically for tail-vein and artery visualisation in mice and rats.
Rechargeable, handheld design
Veinlite LED+ is powered by a rechargeable lithium-ion battery, with approximately 300 minutes of continuous operation per charge. The device weighs 77 g including the battery and measures 99 × 57 × 21 mm.
Key specifications
- 27 mm illumination opening
- 28 LEDs: 22 orange and 6 red
- Rechargeable lithium-ion battery
- Weight: 77 g including battery
- Dimensions: 99 × 57 × 21 mm
Handling and hygiene
Use a single-use protective cover and follow the model-specific cleaning instructions. The device is for external use and must not be autoclaved or immersed. Use the specified charging cord and do not operate the device while connected to a power source.
