Nestlab Monitor Offline Software
55130
- Control and record Advanced Nodes from one lab computer.
- No internet or account needed; USB-C dongle included.
- Study mode keeps one continuous record per cage.
FAQ - Nestlab Monitor Offline Software
Do I need one licence per node?
Do I need one licence per node?
Which operating systems are supported?
Which operating systems are supported?
Are Essential Nodes shown in NestLab Monitor?
Are Essential Nodes shown in NestLab Monitor?

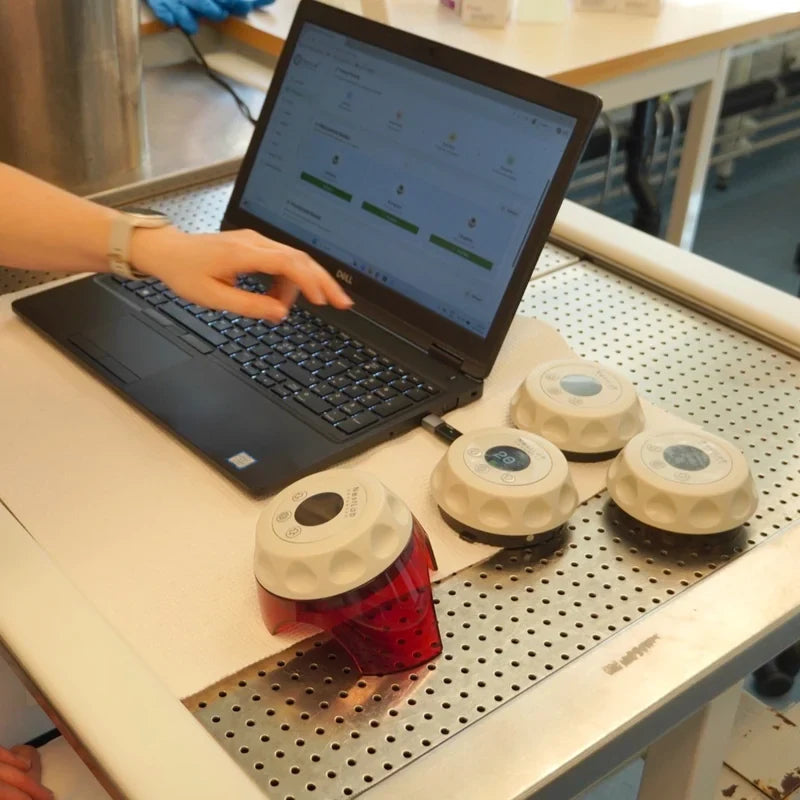

NestLab Monitor is desktop software for working with NestLab Advanced Nodes on a local lab computer. It needs no internet connection and no account. The included USB-C dongle connects the computer to up to 200 nodes.

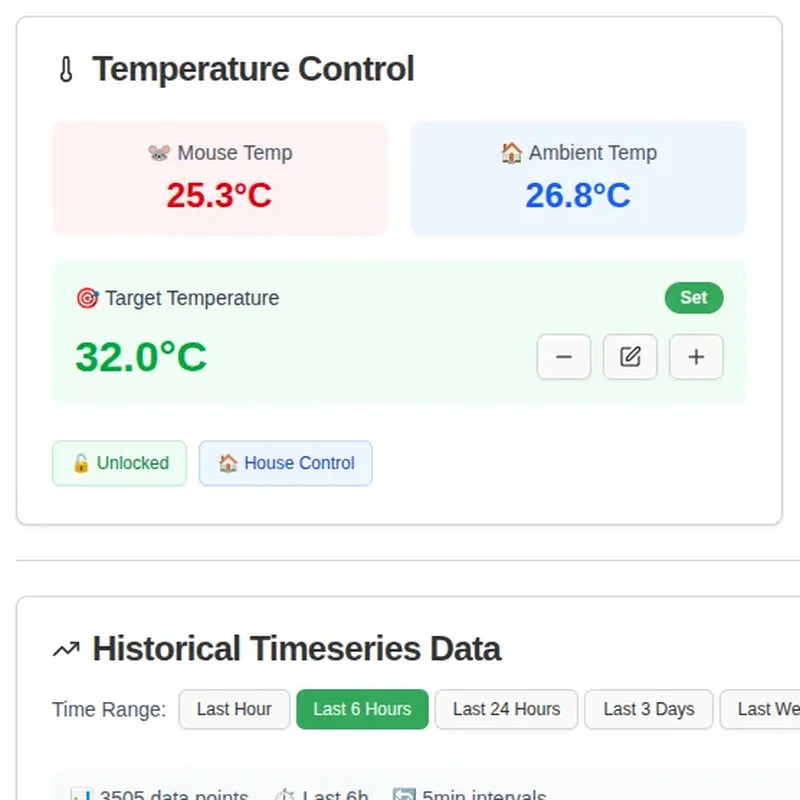

From the computer you can set each node's temperature, lock the setting so it is not changed by accident, choose whether the node regulates on the heater or on the rodent's surface temperature, and request an IR heatmap image. Each node regularly reports its status back.
In study mode, data is recorded per cage rather than per node. When a node is taken out for charging and replaced, the new node continues the same cage's record, so every cage keeps one continuous timeline.
Why it helps
- Two-way control of every node from one computer
- Data stays on premises, with no internet connection required
- One continuous record per cage, even when nodes are swapped for charging
- Export to CSV and PNG for your own analysis
- One-time licence per computer, not per node
Specifications
| Control | Set temperature; lock/unlock; control source (heater or rodent surface temperature); heatmap request |
|---|---|
| Status from nodes | Battery, set and heater temperature, max. rodent surface temperature, heating power, charging, error flags |
| Experimental data | Activity level, occupancy, respiratory rate, rodent count (in development, not validated) |
| Thermal image | 32 × 32 IR heatmap on request |
| Operating systems | Windows, Linux and macOS |
| Interface language | English |
| Export | CSV (data), PNG (heatmaps) |
| Licence | One-time, per computer |
| Capacity | Up to 200 nodes per dongle |
What's included
- 1 × NestLab Monitor (offline) licence

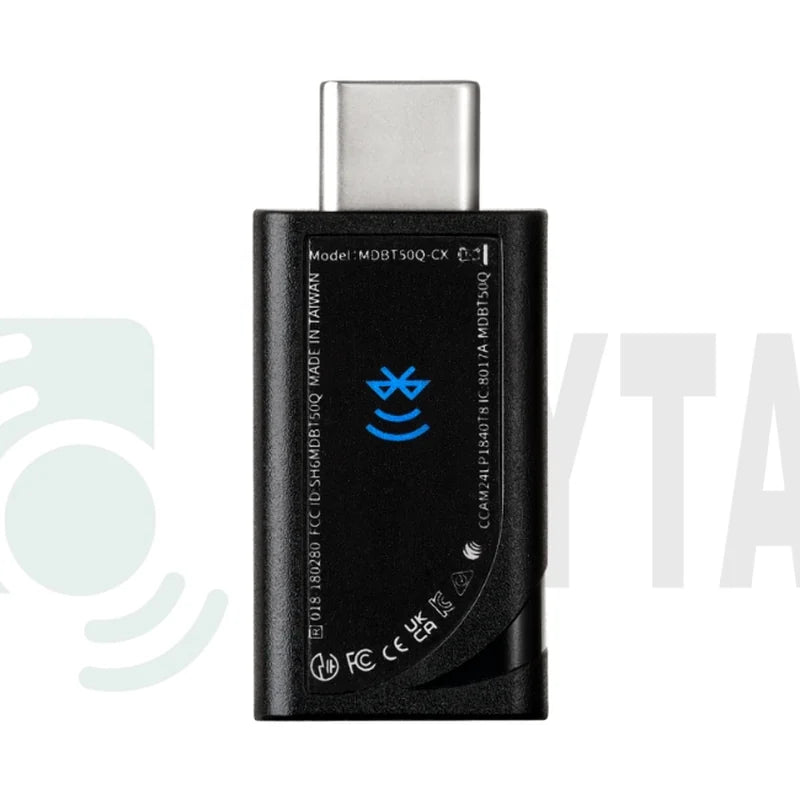

- 1 × USB Dongle — USB-C
- 1 × NestLab Professional — 3-Month Trial (free)
Good to know
Monitor works with Advanced Nodes. Essential Nodes have no radio and are not shown. For computers without USB-C, a dongle for older ports is available.
Need help choosing the right configuration? Brogaarden LAS offers personal advice, demonstrations on request and local service. Contact us for a quote.
Activity level, occupancy, respiratory rate and rodent count are provided by NestLab as experimental data. They are in development and not validated as study endpoints.
